Full Adder Circuit

Detailed Discussion

1)What is Full Adder Circuit?
  An adder is a digital logic circuit in electronics that is extensively used for the addition of numbers.Full Adder is the adder which adds three inputs and produces two outputs Sum and Carry. The first two inputs are X and Y and the third input is an input carry as Z. There are two outputs Sum and Carry. This carry out to the next addition column.

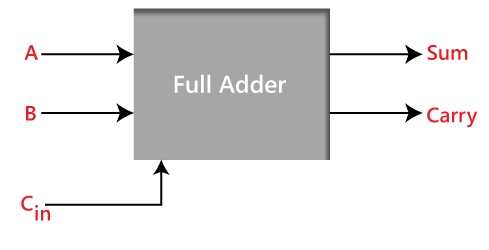

Full Adder Block Diagram

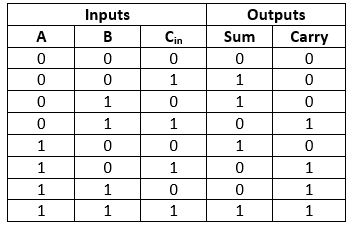

  Full Adder Truth Table

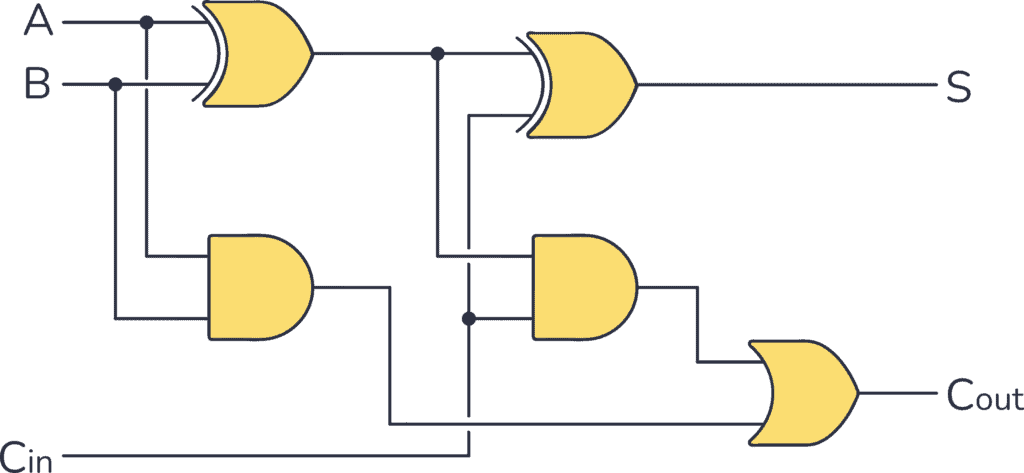

  Full Adder Circuit/ Logical Diagram

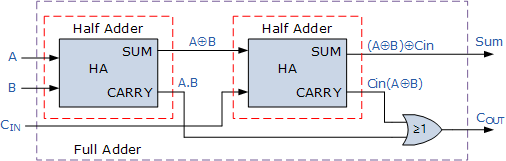

  Full Adder using two Half Adder Block Diagram

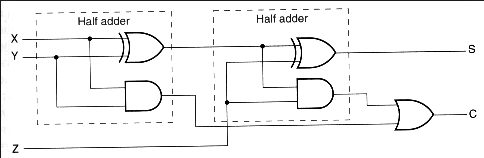

  Full Adder using two Half Adder Circuit Diagram


---

---

---
